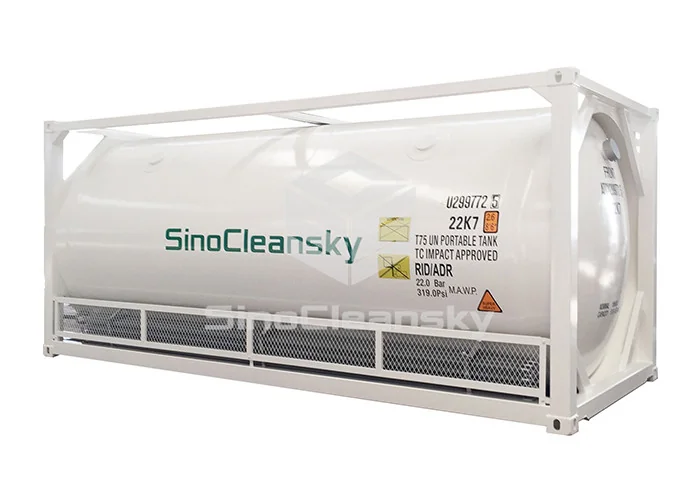

T75 ISO Tank

SinoCleansky T75 ISO Tank Container is a high-performance pressure vessel designed for the storage and transportation of cryogenic liquefied gases. Featuring high-vacuum multi-layer insulation technology, it delivers superior thermal performance and extended holding times, enabling seamless intermodal transport across sea, rail, and road.

Certified Quality: Certified by Lloyd’s Register, BV, and CCS; compliant with ASME+IMDG/ADR/RID TIR/ CSC / UIC / TC/ DOT/ GB and other international standards.

SinoCleansky’s T75 new design (20ft) brings you:

Item	Upgrade	Before	Change	Change%	Benefit est.
Water Capacity (m³)	21.4	21	+0.4	+2%	extra 42 m³ of payload capacity per truck per year
Tare Weight (kg)	8,000	8,400	-400	-5%	42 fewer tons to haul on every year

Key Specs

Item	Specification
Tank Type	T75
Size	20ft / 40ft / 45ft
Working Pressure	0.65 / 0.8 / 1.6 / 1.8 / 2.2 / 2.4 MPa
Insulation	High vacuum multi-layer insulation
Applicable Media	LOX/LIN/LAr/LNG/LC2H4/LC2H6/LCO2/LN2O
Design Standards	ASME VIII DIV 1-2025Ed(MA44) T75 UN Portable Tank, IMDG, TIR, UID, CSC,TC US DOT(CFR49), RID/ADR, ISO1496-3, CGA 341
Certifications	Lloyd’s or BV Registered

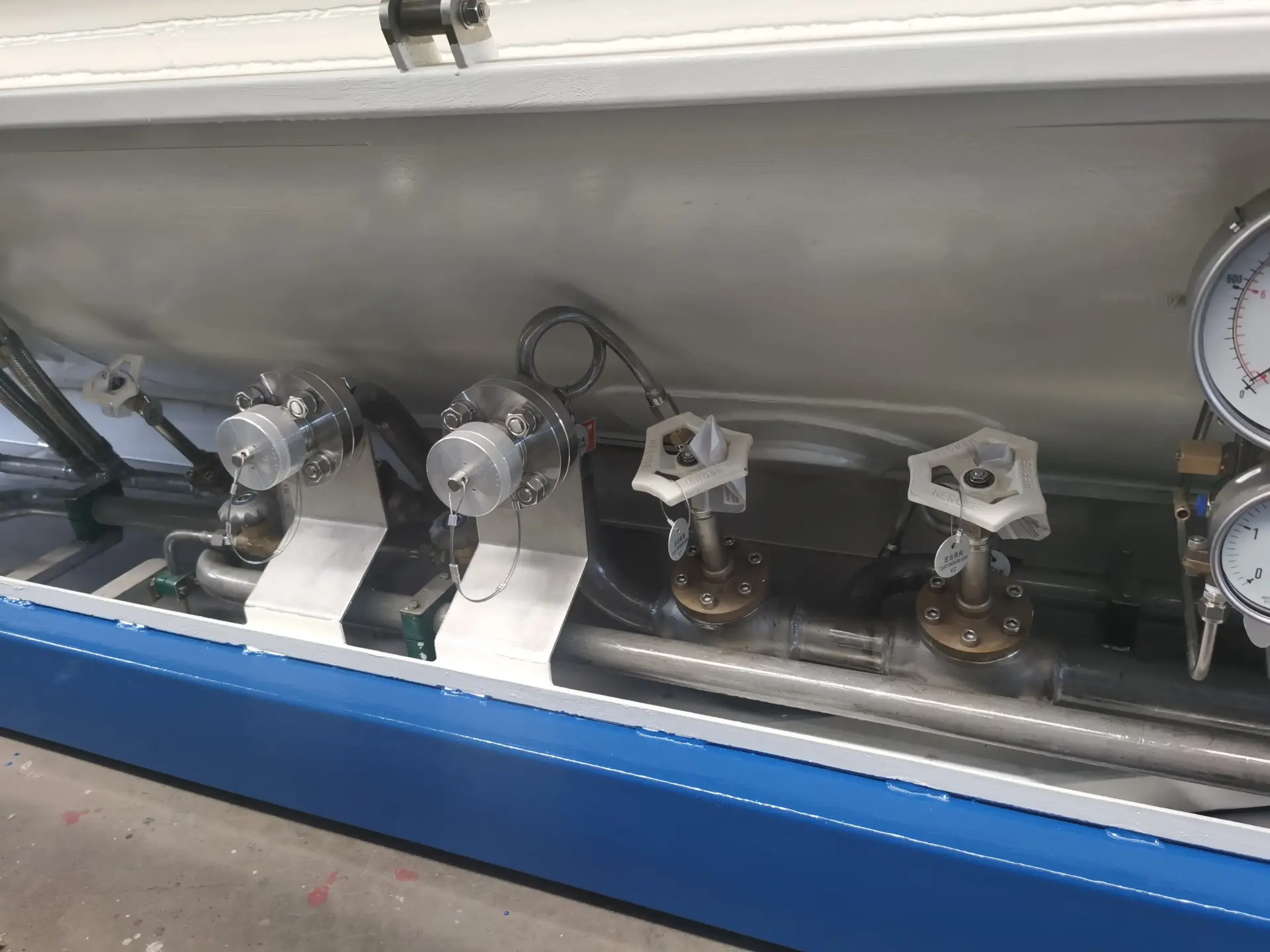

Valve Brand (opt.)	HEROSE / Rego / Wika

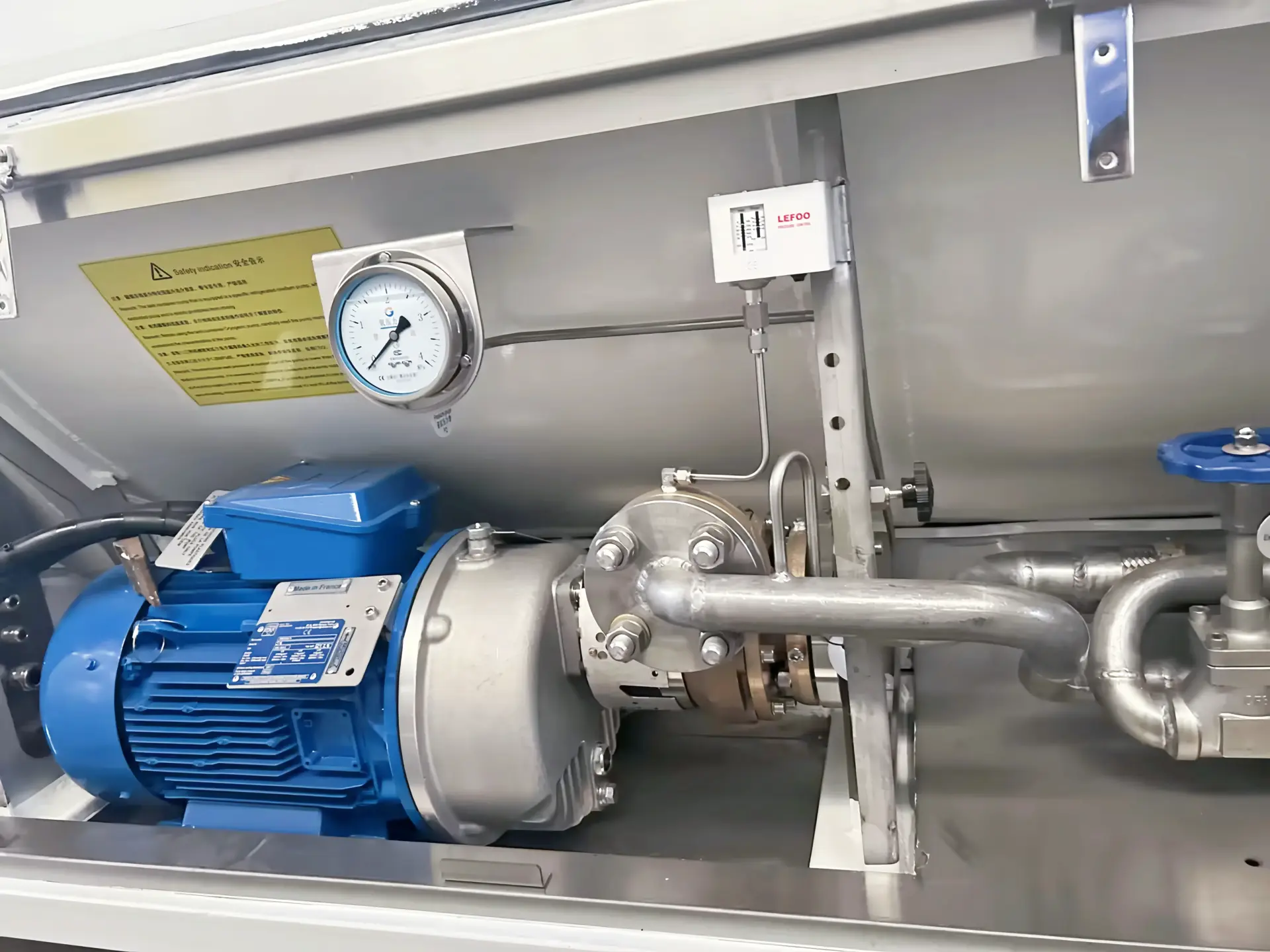

Pump Brand (opt.)	Smith (USA) / Cryostar (France)
Annual Capacity	2,000+ units



Technical Specifications

Item / Model	SCSI-TXD21BA	SCSI-TXD21BB	SCSI-TXD21BC	SCSI-TCD21KB	SCSI-TCD21KC	SCSI-TCD21KF	SCSI-TXU46A	SCSI-NCU46A	SCSI-L2K7
Size type	20ft	20ft	20ft	20ft	20ft	20ft	40ft	40ft	45ft
Full capacity (m³)	21.40	21.40	21.40	21.00	21.00	21.00	46.00	46.00	52.60
M.A.W.P (Mpa)	2.20	2.20	2.20	2.20	2.20	2.20	0.80	0.80	0.65
Design temperature	-196°~+50°	-196°~+50°	-196°~+50°	-196°~+50°	-196°~+50°	-196°~+50°	-196°~+50°	-196°~+50°	-196°~+50°
Tare weigh (kg)	7,980	7,980	8,250	8,400	8,700	8,700	10,800	12,800	12,200
MPGM (kg)	36,000	36,000	36,000	36,000	36,000	36,000	36,000	36,000	34,000
Type of Insulation	High vacuum multi-layer	High vacuum multi-layer	High vacuum multi-layer	High vacuum multi-layer	High vacuum multi-layer	High vacuum multi-layer	High vacuum multi-layer	High vacuum multi-layer	High vacuum multi-layer
Dimension (L*W*H)mm	6058*2438*2591	6058*2438*2591	6058*2438*2591	6058*2438*2591	6058*2438*2591	6058*2438*2591	12192*2438*2591	12192*2438*2591	13716*2438*2591
Medium	LOX/LIN/LAr/LNG LN2O/LC2H4/ LC2H6/LCO2	LOX/LIN/LAr/ LCO2/LN2O	LOX/LIN/LAr/ LCO2/LN2O	LOX/LIN/LAr/ LCO2/LN2O	LOX/LIN/LAr/ LCO2/LN2O	LOX/LIN/LAr/ LCO2/LN2O	LNG/LC2H4/LC2H6	LNG/LC2H4/LIN	LNG
Design Codes	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC US DOT(CFR49) RID/ADR ISO 1496-3/CGA 341	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC US DOT(CFR49) RID/ADR ISO 1496-3/CGA 341	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC US DOT(CFR49) RID/ADR ISO 1496-3/CGA 341	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC US DOT(CFR49) RID/ADR ISO 1496-3	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC US DOT(CFR49) RID/ADR ISO 1496-3	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC US DOT(CFR49) RID/ADR ISO 1496-3	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC US DOT(CFR49) RID/ADR ISO 1496-3/CGA 341	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC RID/ADR ISO 1496-3 FRA/CGA 341	ASME VIII DIV 1 T75 UN IMDG/TIR/UIC CSC/TC US DOT(CFR49) RID/ADR ISO 1496-3

Packaging, Shipping & Logistics

• By Sea: Standard ISO dimensions for direct container vessel loading; global port-to-port delivery.
• By Rail: Fits standard rail flatcars; suitable for cross-border rail routes like China-Europe Express.

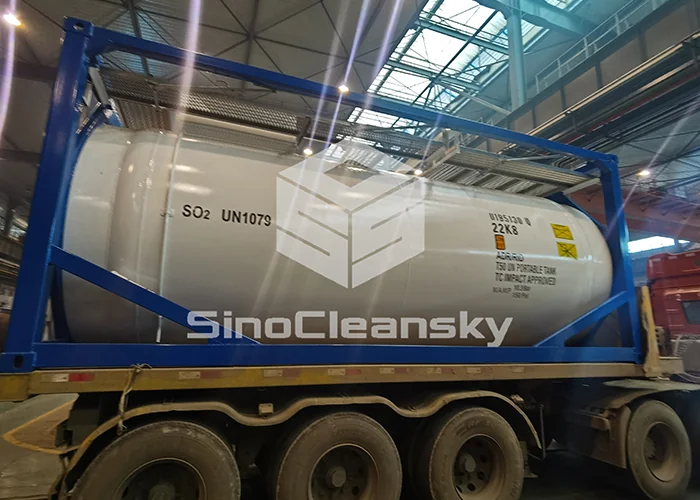

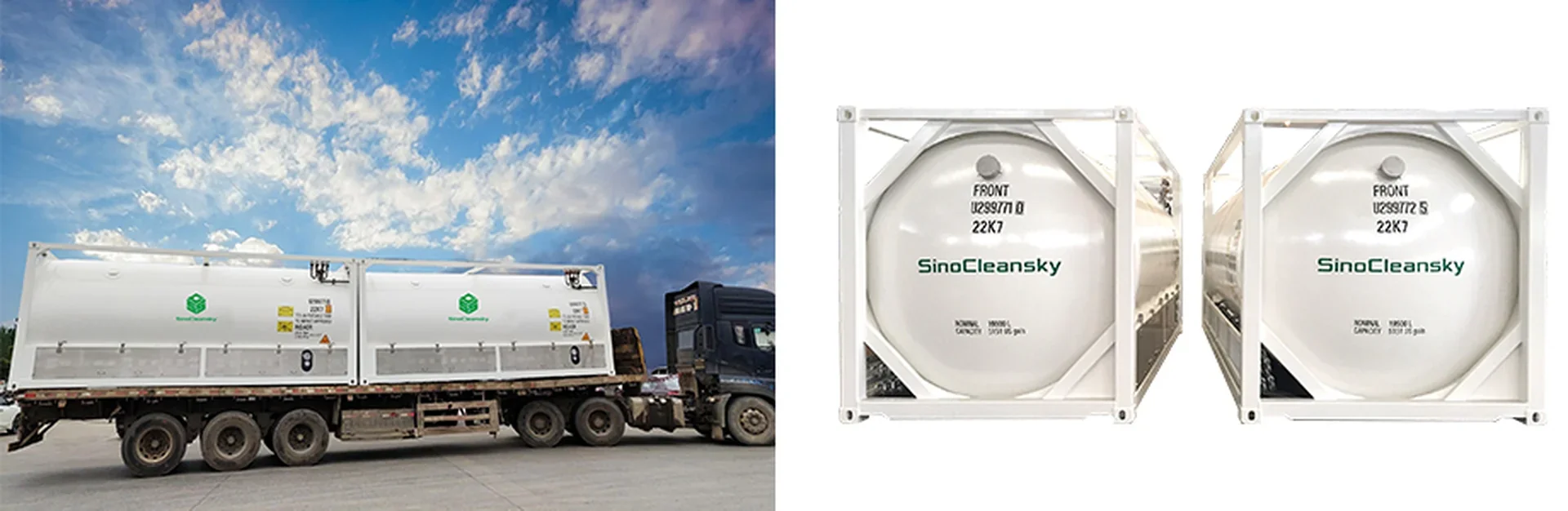

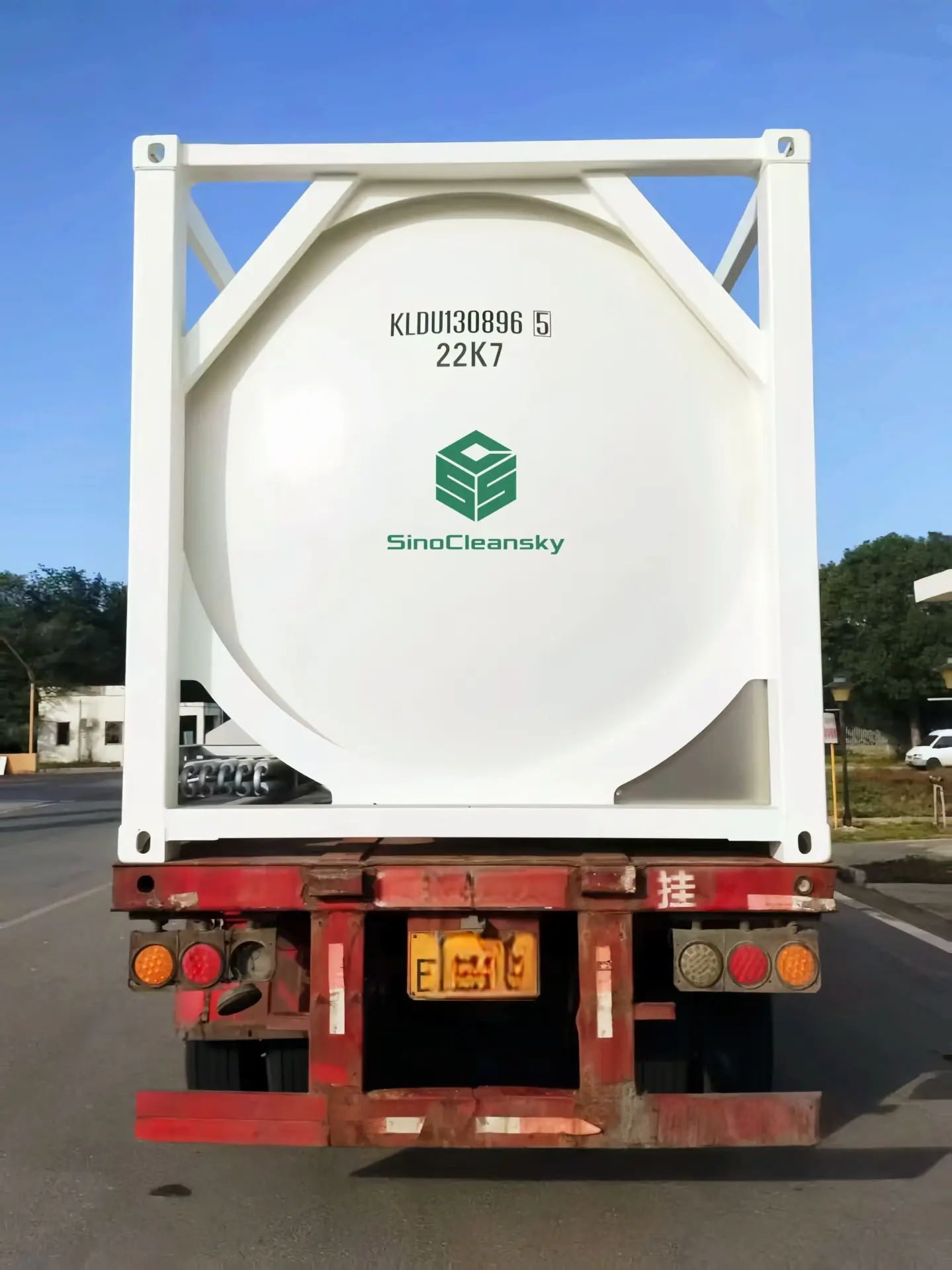

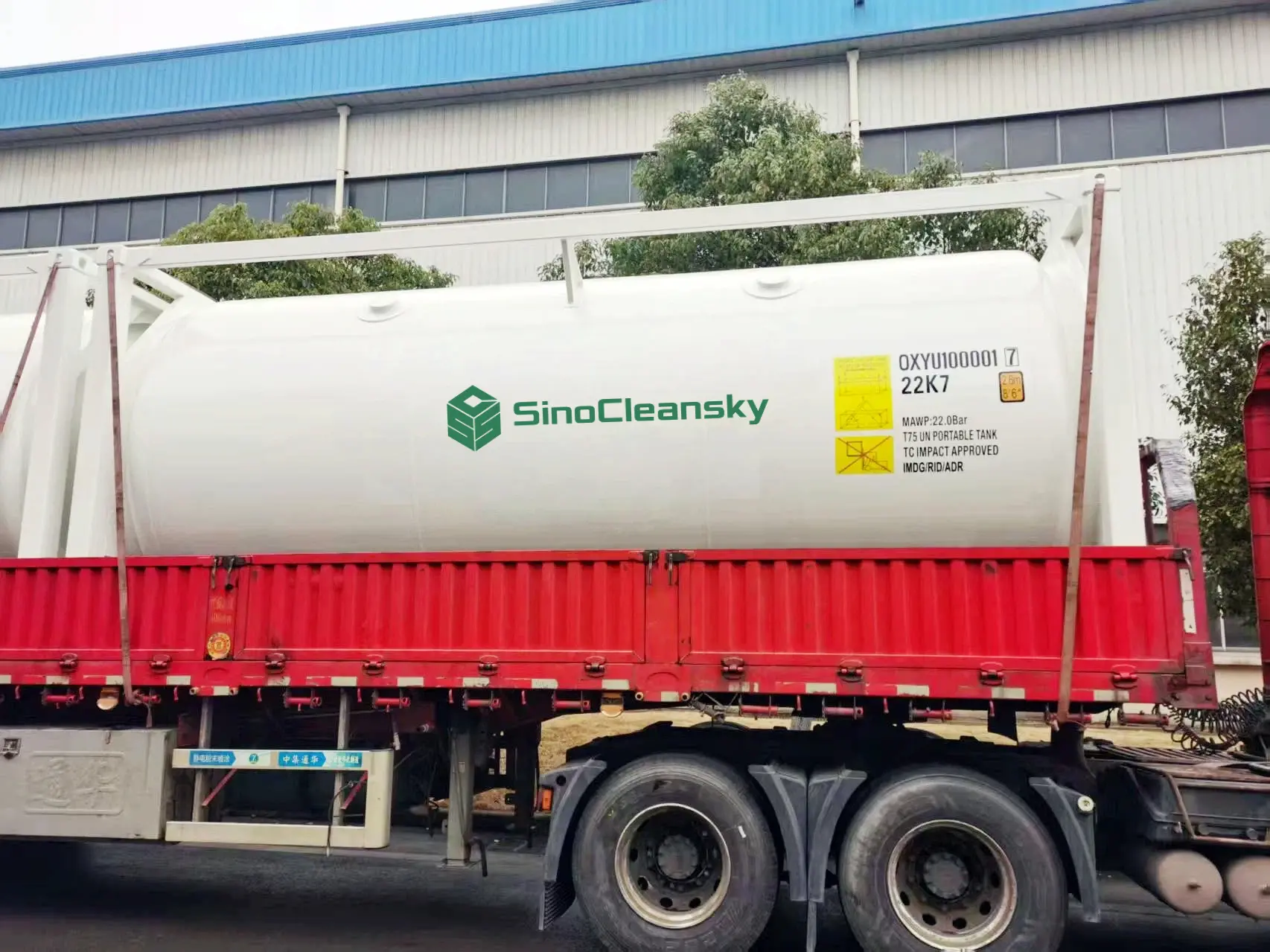

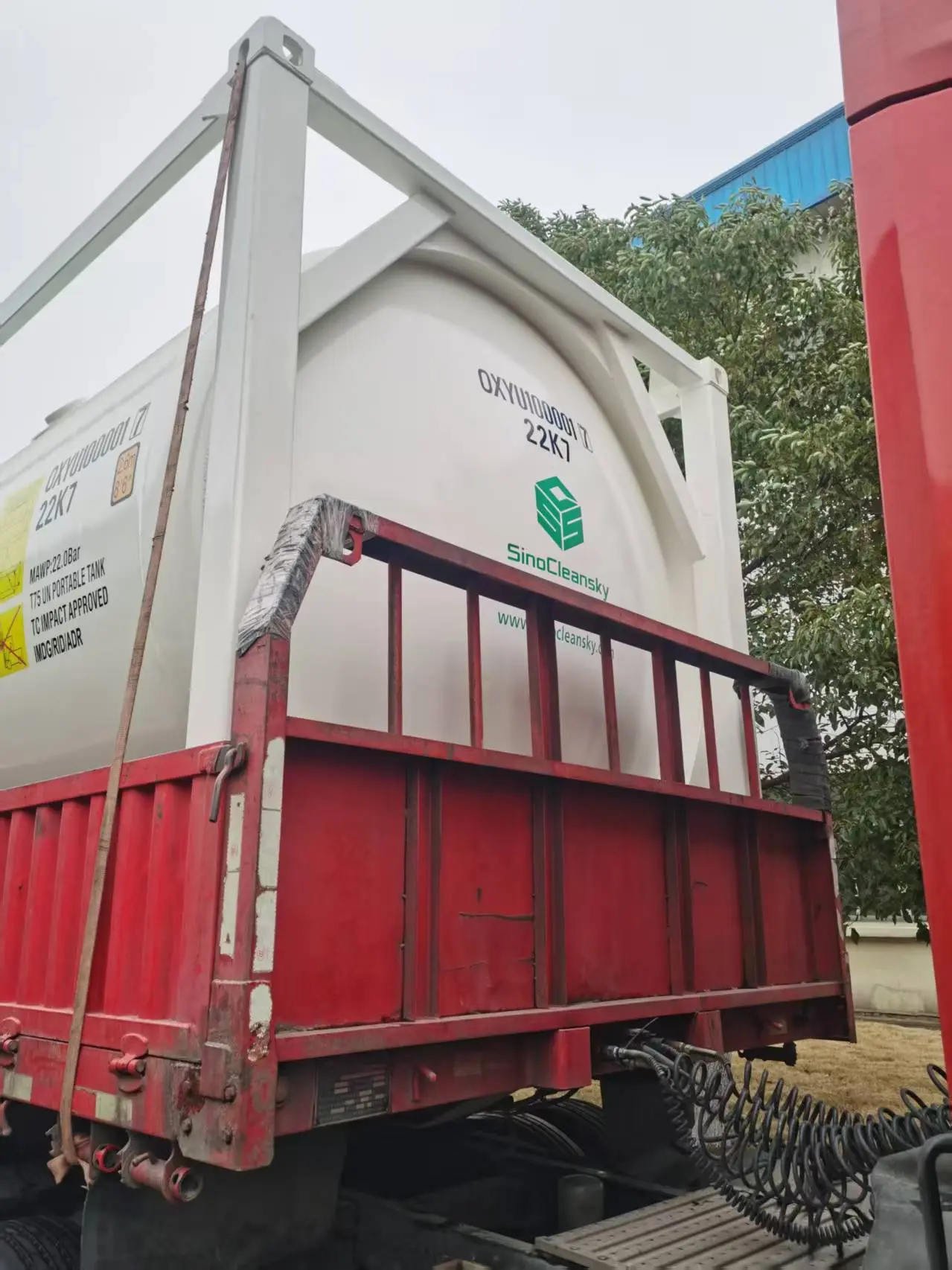

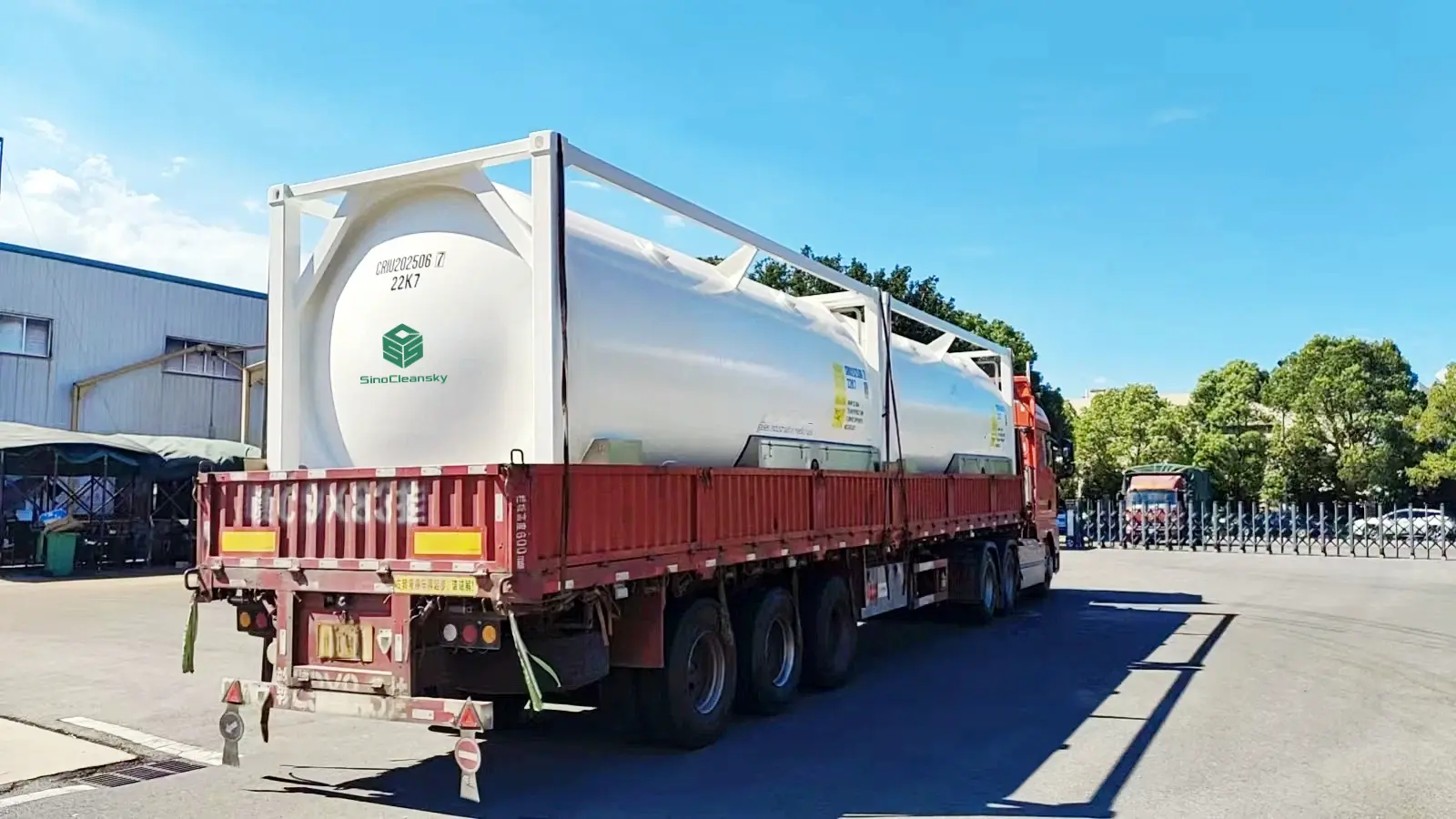

• By Road: Mounts on container chassis trucks for door-to-door delivery and last-mile distribution.

Shipping Guidelines & Delivery

• Inspection & Documents

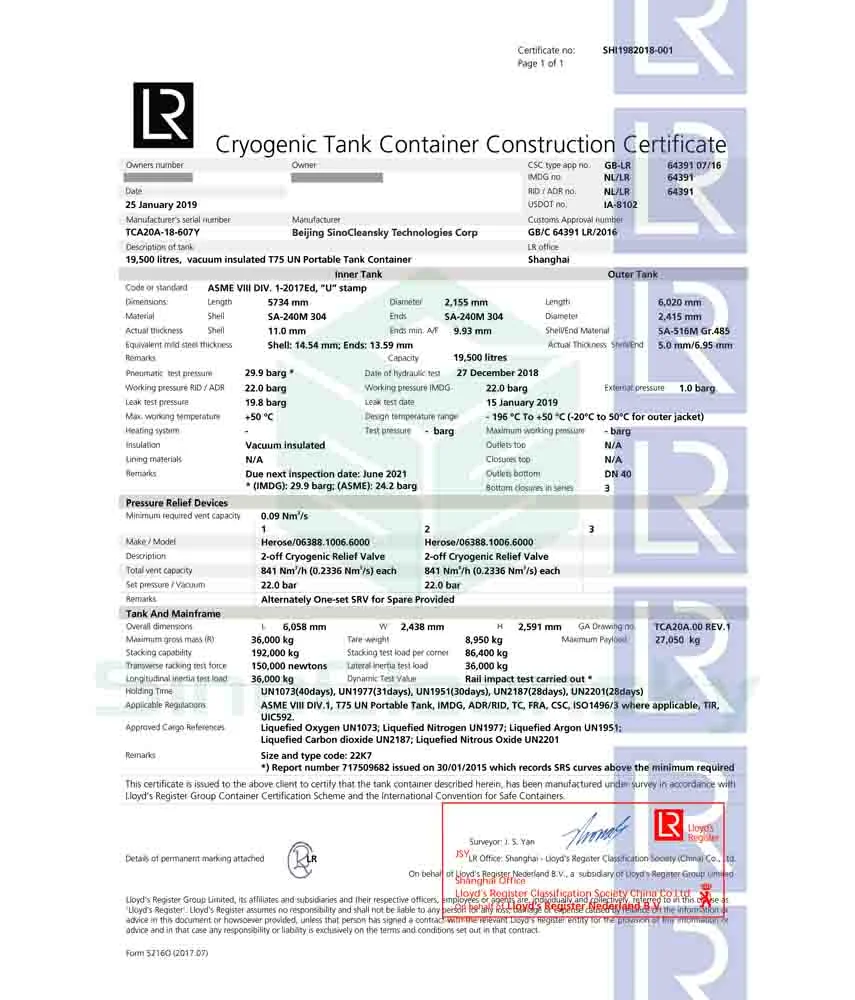

  Each ISO Tank Container undergoes hydrostatic testing, pneumatic tightness testing, and helium mass spectrometer leak detection before leaving the factory. A complete set of technical documents is provided with each unit, including product certificate, CSC data plate, and inspection reports.

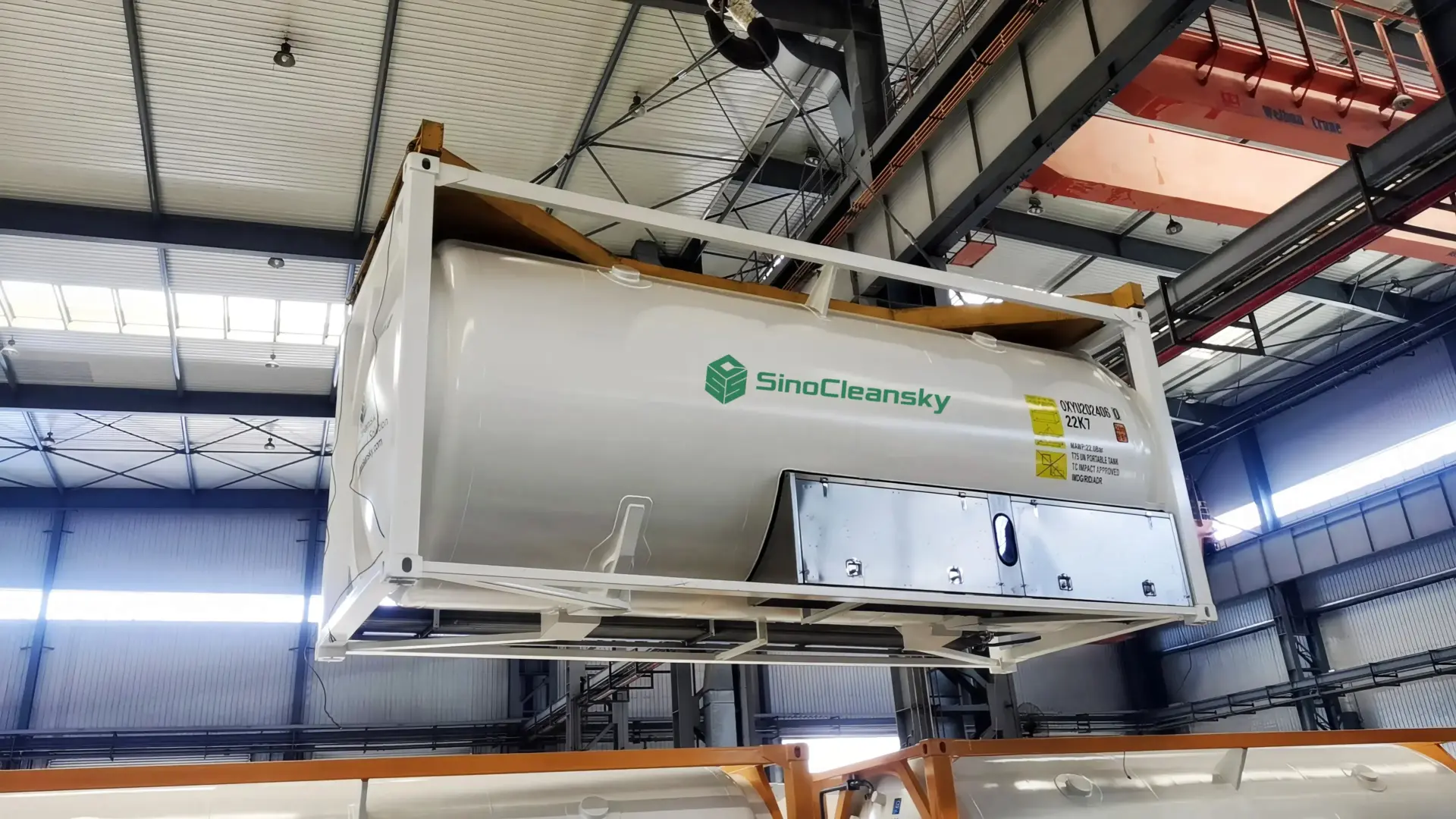

• Packaging & Protection

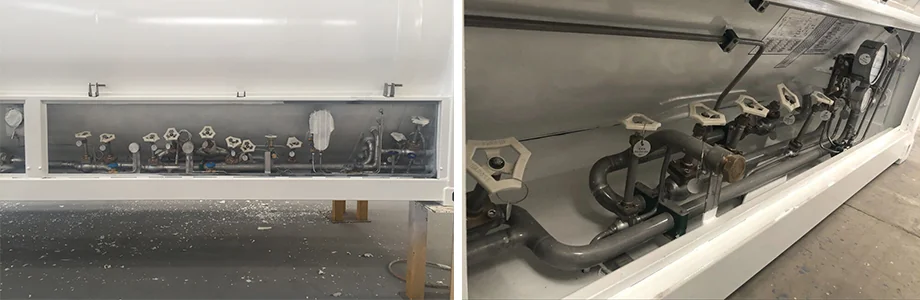

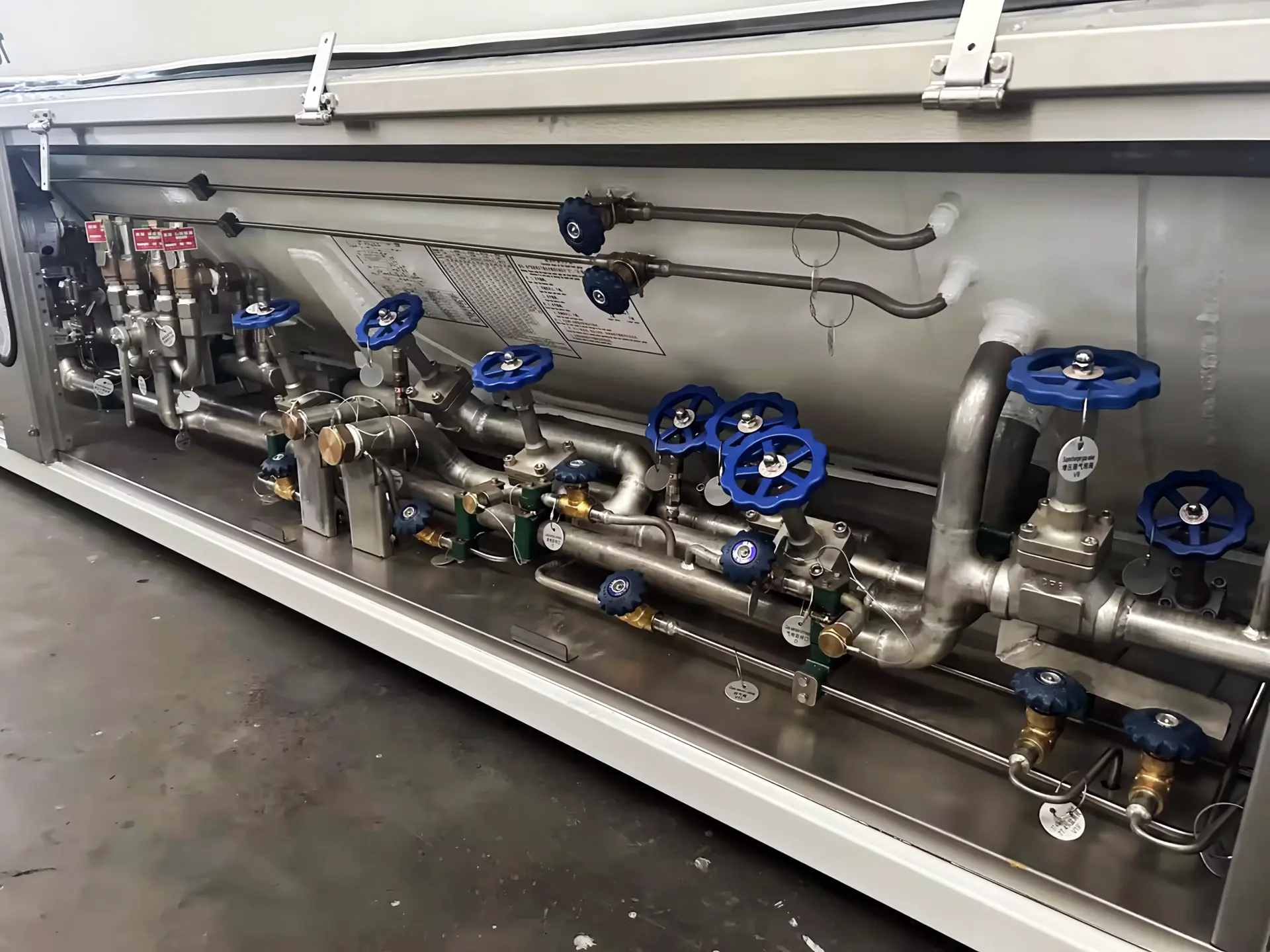

  Exposed components such as valves and instruments are wrapped with protective covers; anti-collision blocks are installed on the frame corner fittings; and hazard labels and operational warning tags are affixed to the exterior of the tank.
• Lead Time
  Standard models are available in stock for fast delivery. Custom models have a production lead time of approximately 60–90 days, depending on specifications and order volume.
• DG Compliance
  Compliant with the IMDG Code (International Maritime Dangerous Goods Code), ADR (Agreement concerning the International Carriage of Dangerous Goods by Road), and RID (Regulations concerning the International Carriage of Dangerous Goods by Rail).
• Warranty & Service
  A 12-month warranty is provided from the date of delivery, covering free repair or replacement of non-artificial damages during the warranty period. Global technical support and spare parts supply are available.
• Custom Logistics
  One-stop logistics solutions can be provided based on the customer’s destination port, transport route, and delivery schedule requirements.
